(A) KNX S Series Smart Touch Panel & Push Button

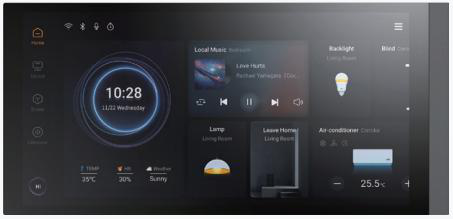

10.1" IPS touch panel,resolution 1280*800, Out-of-wall thickness: 9mm, aluminum faceplate, built-in temperature, humidity, proximity sensor.
10.1" IPS touch panel,resolution 1280*800, Out-of-wall thickness: 8.5mm, aluminum faceplate, built-in temperature, humidity, proximity sensor.
KNX Smart Touch S7 wih secure (KNX+ SIPIntercom+App Server)

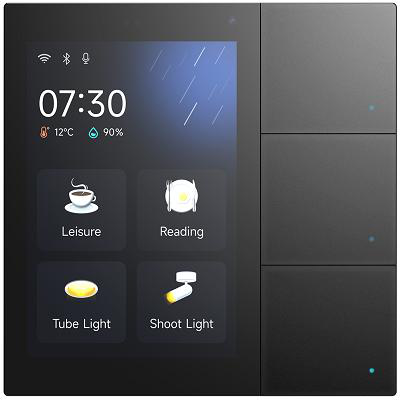

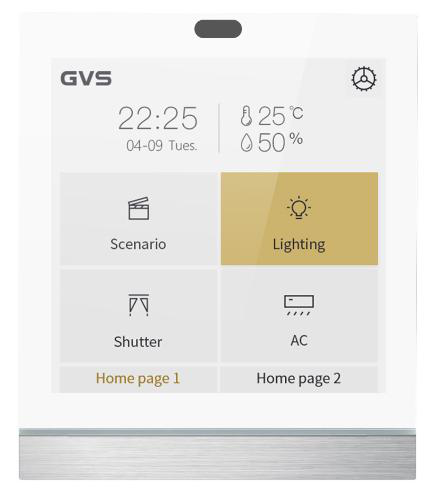

4" IPS touch panel, resolution 480*480, Out-of-wall thickness:8mm/10.4mm, built-in temperature, humidity, proximity sensor. APP control,full SIP
4" IPS touch panel, resolution 480*480, Out-of-wall thickness:8mm/10.4mm, built-in temperature, humidity, proximity sensor. Full KNX functions: 6
3.3" IPS touch panel, resolution 480*320, Out-of-wall thickness:10.4mm, 3 physical buttons, built-in temperature, humidity, proximity sensor.
Color LCD Screen, 0.85“, resolution 128*128, Out-of-wall thickness:10.4mm,built-in temperature sensor, Proximity sensor, RGB color LED indicator,
Color LCD Screen, 0.96“, resolution 80*160, Out-of-wall thickness:10.4mm,built-in temperature, proximity sensor, RGB color LED indicator,
Color LCD Screen, 0.96“, resolution 80*160, Out-of-wall thickness:10.4mm,built-in temperature, proximity sensor, RGB color LED indicator,
Color LCD Screen, 0.85“, resolution 128*128, Out-of-wall thickness:10.4mm,built-in temperature sensor, Proximity sensor, RGB color LED indicator,
3" IPS touch panel, resolution 854*480, Out-of-wall thickness:8mm, replaceable mechanical metal buttons, built-in temperature & humidity &

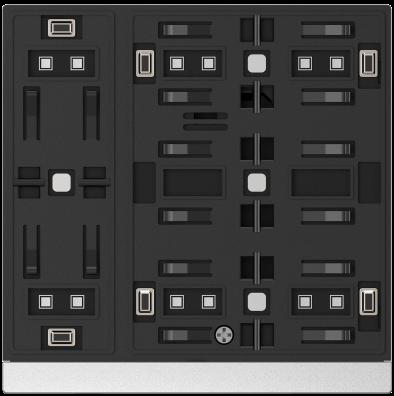

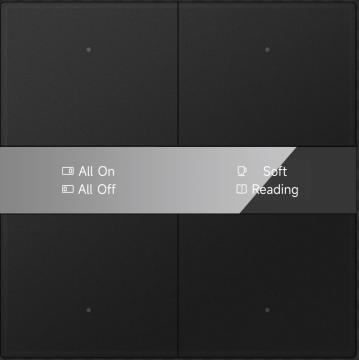

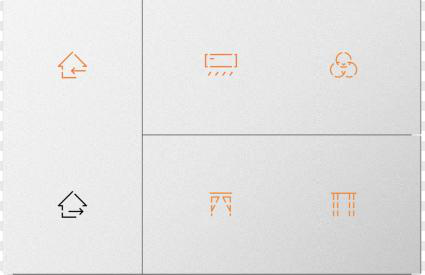

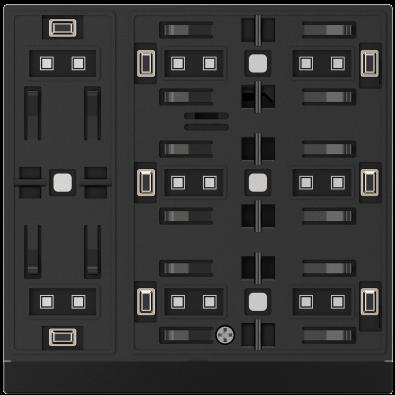

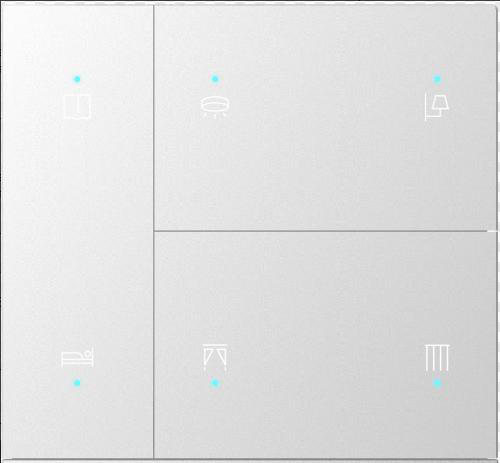

Metal Button Set for KNX Waltz Touch+ Pad, light through dot
Metal Button Set for KNX Waltz Touch+ Pad, light through dot
Metal Button Set for KNX Waltz Touch+ Pad, light through dot, baking finish white
Metal Button Set for KNX Waltz Touch+ Pad, light through engraving
Replaceable mechanical metal buttons,Out-of-wall thickness:8mm, built-in temperature sensor, 2-fold input(Binary or NTC 10K Temp. sensor), RGB
Installation:Wall mounted. Fits in Chinese 86*86mm, British 70*70mm, German Round (Ø 68mm), Swiss wall boxes.

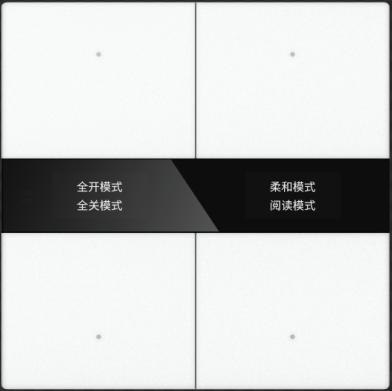

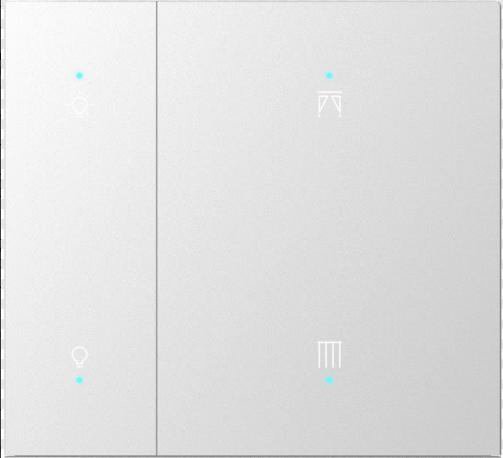

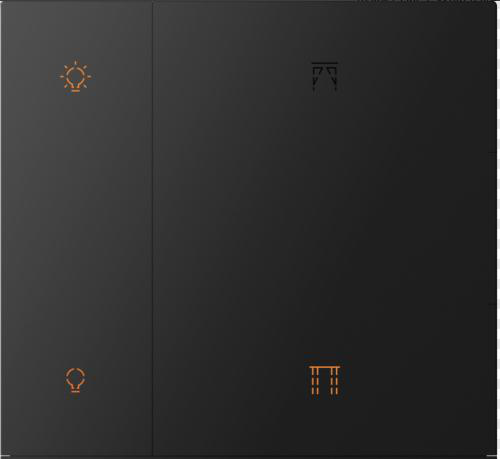

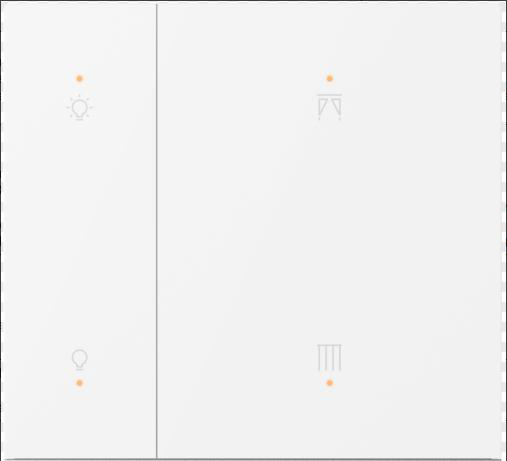

Metal Button Set for KNX Waltz Push Button Sensor, 1-Gang, light through dot
Metal Button Set for KNX Waltz Push Button Sensor, 1-Gang, light through dot, baking finish white
Metal Button Set for KNX Waltz Push Button Sensor, 1-Gang, light through engraving
Replaceable mechanical metal buttons,Out-of-wall thickness:8mm, built-in temperature sensor, 2-fold input(Binary or NTC 10K Temp. sensor), RGB
Power: KNX Bus only; Consumption: bus 21mA

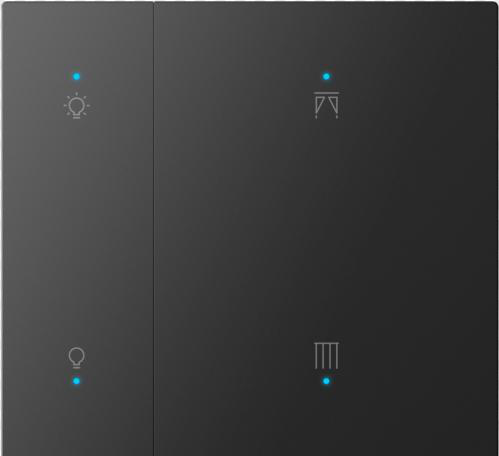

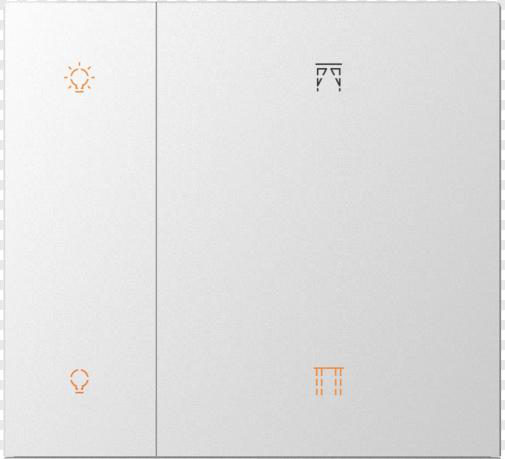

Metal Button Set for KNX Waltz Push Button Sensor, 2-Gang, light through dot
Metal Button Set for KNX Waltz Push Button Sensor, 2-Gang, light through dot, baking finish white

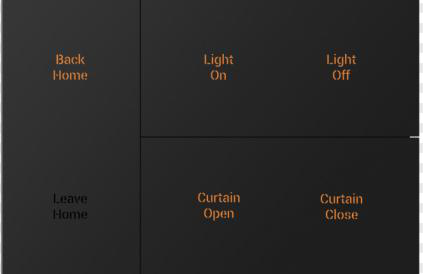

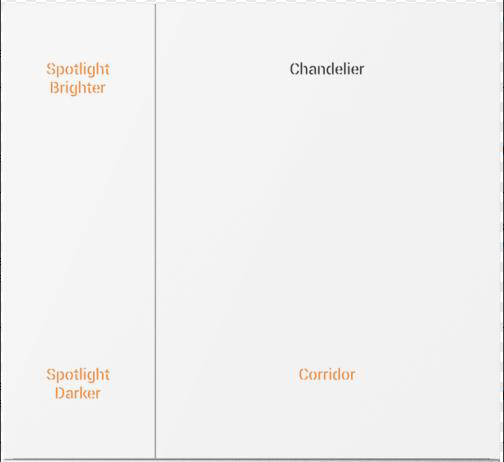

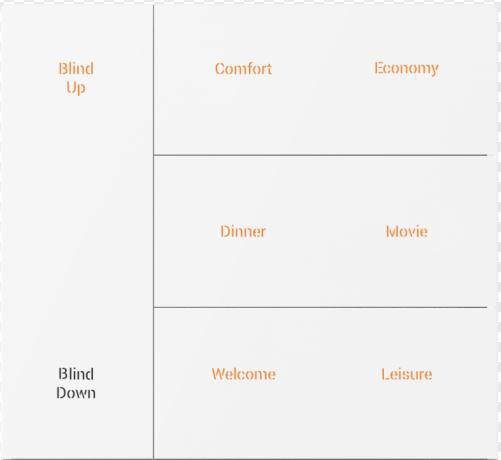

Burttons with default blank printing, Hollow laser engraving with icons/ text, so LED light can get through the button.
Please define the design for printing on the button in advance if engraved in the factory.
Power: KNX Bus only; Consumption: bus 21mA

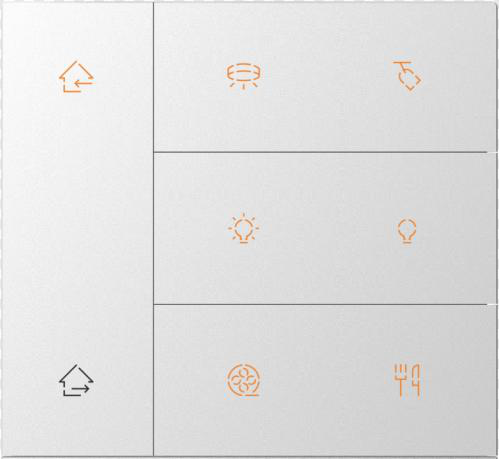

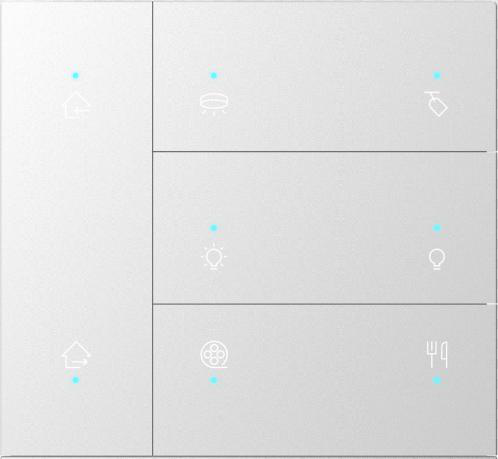

Metal Button Set for KNX Waltz Push Button Sensor, 3-Gang, light through dot
Metal Button Set for KNX Waltz Push Button Sensor, 3-Gang, light through dot, baking finish white
Metal Button Set for KNX Waltz Push Button Sensor, 3-Gang, light through dot, baking finish white
Please define the design for printing on the button in advance if engraved in the factory.
Power: KNX Bus only; Consumption: bus 21mA
Metal Button Set for KNX Waltz Push Button Sensor, 4 Gang, light through dot
Burttons with default blank printing, Hollow laser engraving with icons/ text, so LED light can get through the button.
Metal Button Set for KNX Waltz Push Button Sensor, 4 Gang, light through engraving

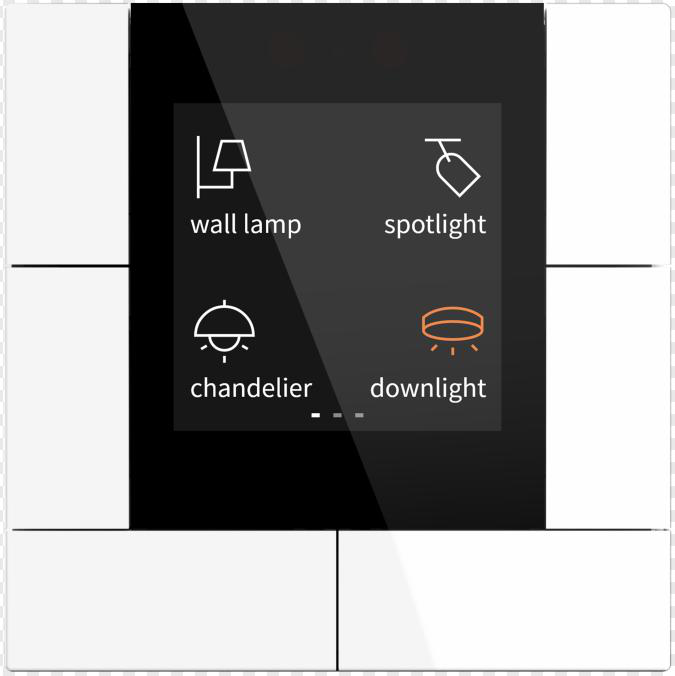

5" IPS touch panel, resolution 480*854, Out-of-Wall thickness:11.5mm, aluminum faceplate, built-in temperature, proximity sensor,
4" IPS touch panel, resolution 480*480, Out-of Wall thickness:10.5mm, aluminum faceplate, built-in temperature, proximity sensor.
3.5" Color Screen (not touch), resolution 480*320, Out-of-wall thickness:10.5mm, 8 capactive touch buttons( 6 for control-individual or rocker,
3.5" Color Screen (not touch), resolution 480*320, Out-of-wall thickness:10.5mm, 8 capactive touch buttons( 6 for control-individual or rocker,
alarm function, cleaning mode, slap interaction, support global languages, Colorful strip function.

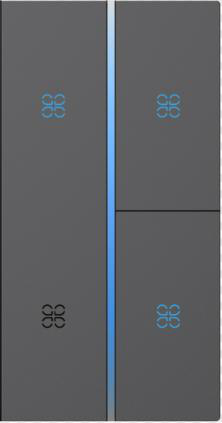

Elegant glass touch buttons, Out-of-wall thickness 8.9mm, metal frame, blue/yellow color LED indicator. Full KNX functions including switch,
Elegant glass touch buttons, Out-of-wall thickness 8.9mm, metal frame, blue/yellow color LED indicator. Full KNX functions including switch,

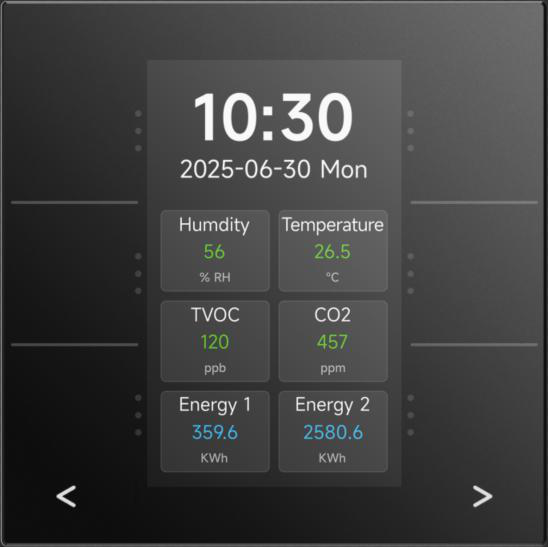

1.9" LCD display, resolution 170*320, Out-of-wall thickness:9.5mm, built-in Temperature, Humidity & Proximity sensor, 2-fold input(Binary or NTC
1.9" LCD display, resolution 170*320, Out-of-wall thickness:9.5mm, built-in Temperature, Humidity & Proximity sensor, 2-fold input(Binary or NTC
1.54" LCD display, resolution 240*240, Out-of-wall thickness:9.5mm, built-in Temperature, Humidity & Proximity sensor, 2-fold input(Binary or NTC
Power: KNX Bus only; Consumption: bus 18mA
comfort,standby,economy,protection. Temperature logic algorithm supports 2-point and PI control
Power: KNX Bus only; Consumption: bus 17mA
Classic plastic push button, Out-of-wall thickness:9.5mm, laser printed paper for icons or description, built-in temperature sensor. Full KNX
Classic plastic push button,Out-of-wall thickness:9.5mm, laser printed paper for icons or description, built-in temperature sensor. Full KNX
Classic plastic push button,Out-of-wall thickness:9.5mm, laser printed paper for icons or description, built-in temperature sensor. Full KNX
Power: KNX Bus only; Consumption: bus 6mA
functions including switch, dimming, shutter, scene control, value sending, RGB,RGBW, shift register, multiple operation, delay mode. Max. 8 group
functions including switch, dimming, shutter, scene control, value sending, RGB,RGBW, shift register, multiple operation, delay mode. Max. 8 group
functions including switch, dimming, shutter, scene control, value sending, RGB,RGBW, shift register, multiple operation, delay mode. Max. 8 group
event, 8 logic functions,Red/Green/Blue color LED indicator.

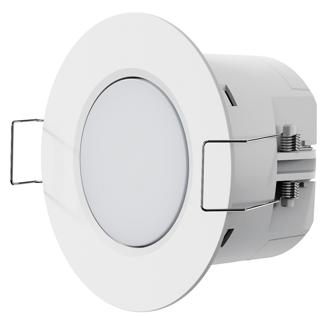

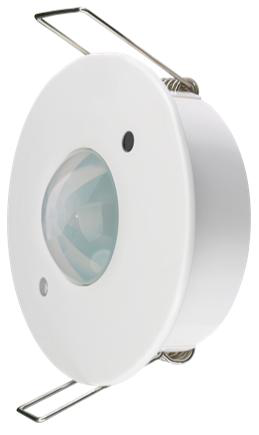

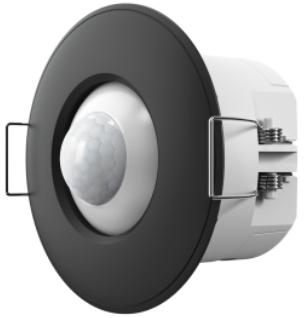

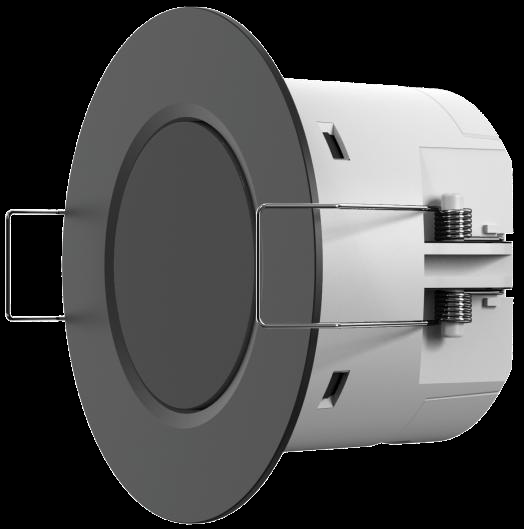

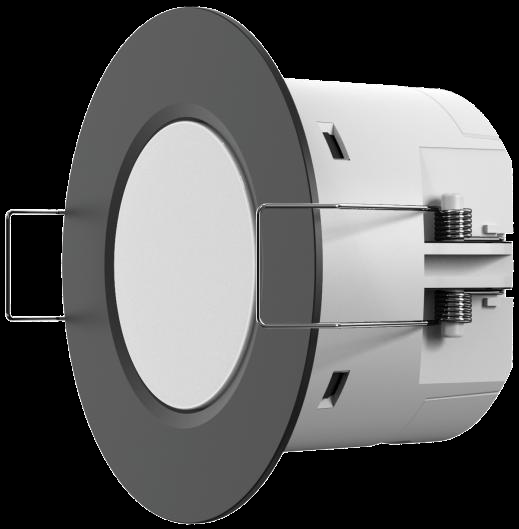

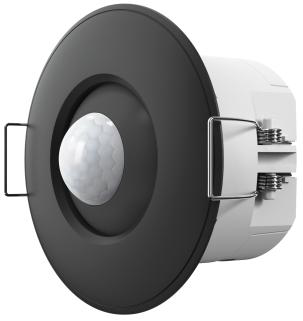

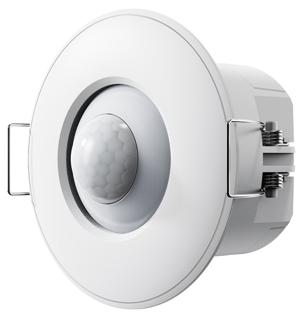

Diameter 8.5m, max. mounting height 4m. With 24GHz microwave detection technology,support normal/tiny movement & Static presence. Built-in

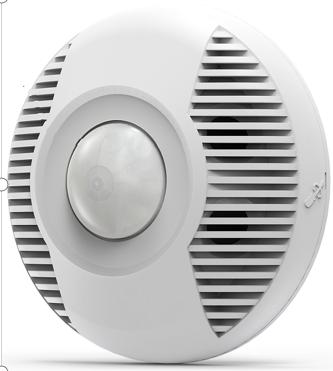

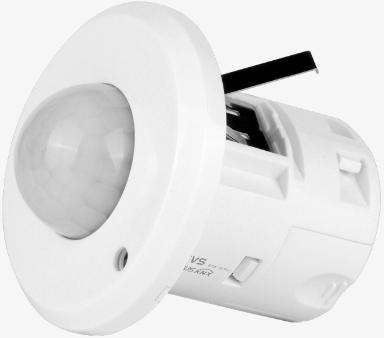

Diameter 15.5m, max. mounting height 6m. With pyroelectric infrared detection technology, support normal movement. Built-in brightness sensor,
Constant lighting Control, RTC controller(1), Logic(8) and scene group(8) functions.
Power: KNX Bus only; Consumption: bus 6.5mA
levels) Air quality controller: humidity control(step), CO2 level output(step & PI )
Power: KNX Bus & Auxiliary; Consumption: bus 4mA & Auxiliary 16mA
Air quality controller: humidity control(step), CO2 level output(step & PI )
Diameter 15.5m, max. mounting height 6m. RTC controller(3), 1 ventilation controller, Logic(8) and scene group(8) functions.

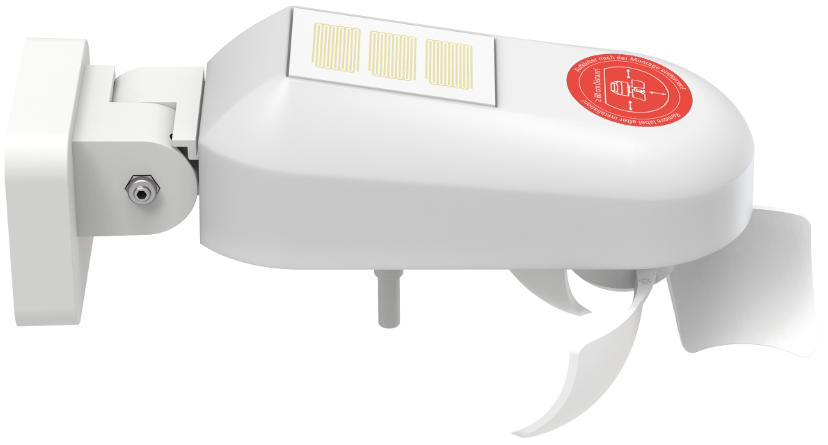

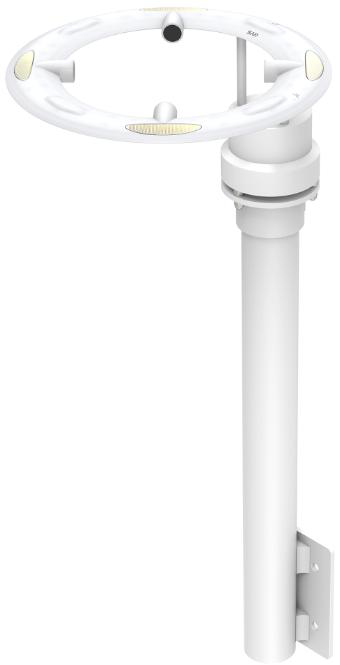

Built-in GPS receiver, temperature sensor, Rain sensor, brightness sensor(3pcs), night recognition, Dawn detection, wind sensor(3 ) to detect wind
Built-in GPS receiver, temperature sensor, Rain sensor, brightness sensor(3pcs), night recognition, Dawn detection, wind sensor(3 ) to detect wind
Built-in GPS receiver(able to calculate sun position), temperature sensor, Humidity sensor, Rain sensor(4),Summer compensation, Frost Alarm,
KNX Switch Actuator with Secure 4-Fold, 16A, 4SU MDRC
KNX Switch Actuator with Secure 8-Fold, 16A, 8SU MDRC

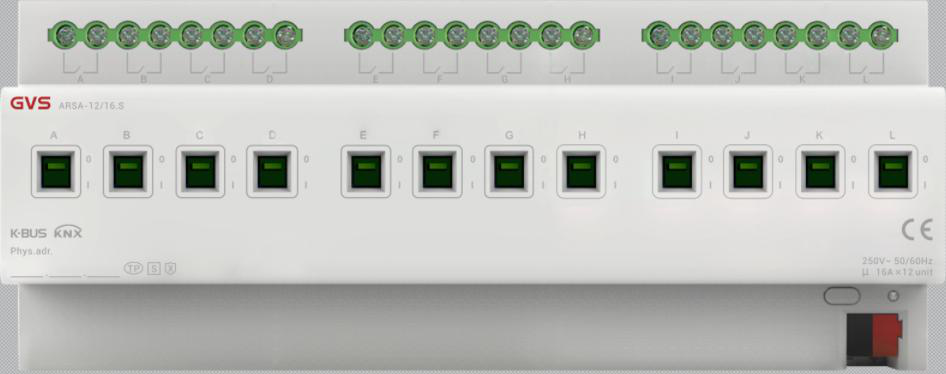

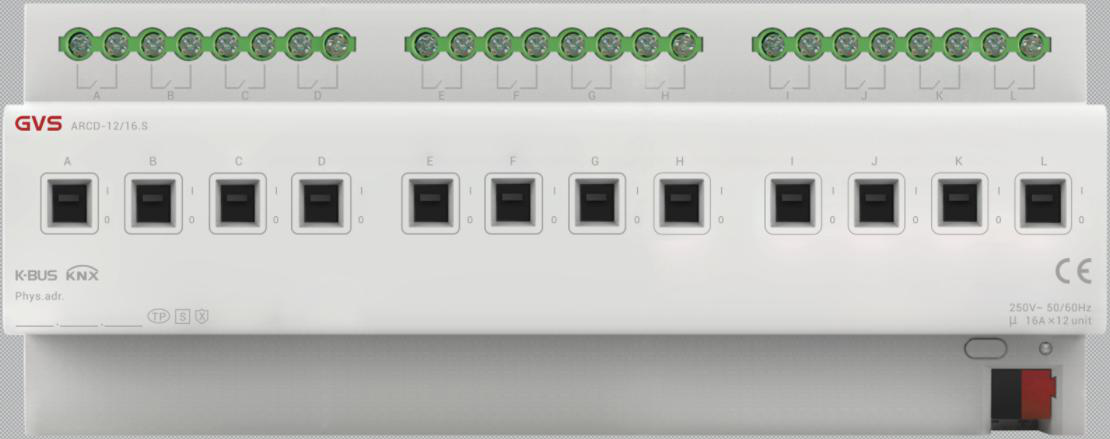

KNX Switch Actuator with Secure 12-Fold, 16A, 12SU MDRC

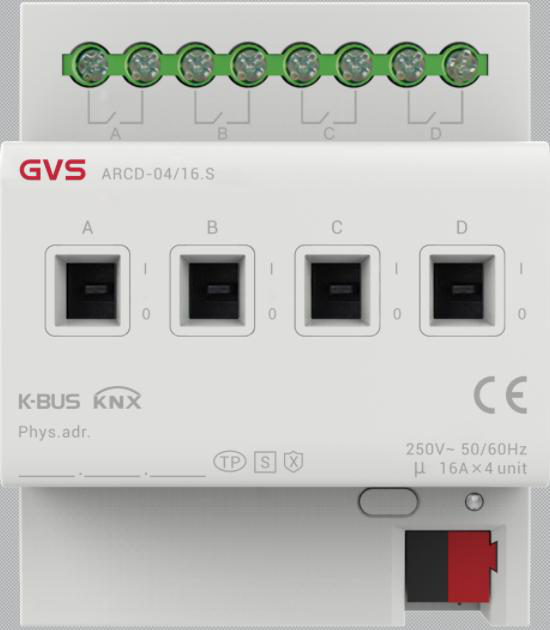

KNX Switch Actuator with Current Detection & Secure 4-Fold, 16A, 4SU MDRC
KNX Switch Actuator with Current Detection & Secure 8-Fold, 16A, 8SU MDRC
KNX Switch Actuator with Current Detection & Secure 12-Fold, 16A,12SU MDRC

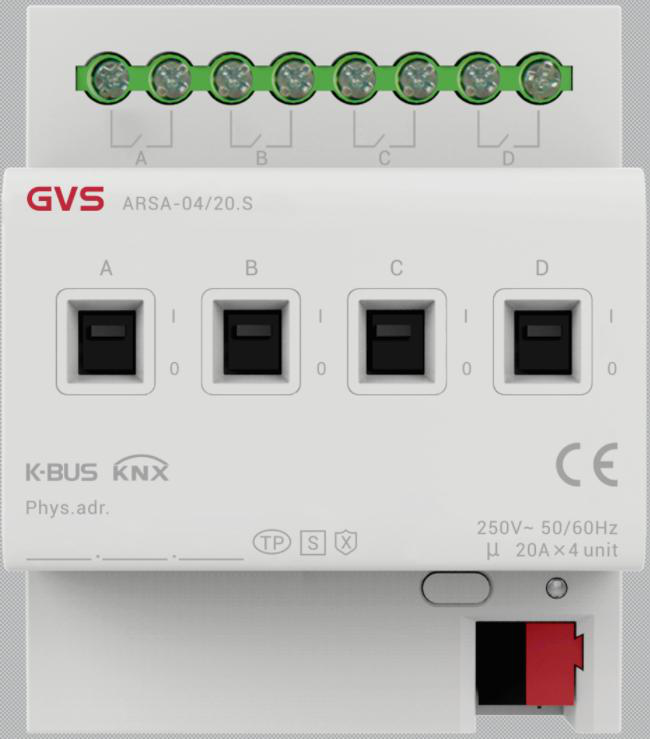

20A/channel, Un rated voltage 250V AC, 50/60Hz, high-current magnetic relay. Switch/heating actuator operation mode. Main KNX functions
KNX Switch Actuator with Secure 8-Fold, 20A, 8SU MDRC

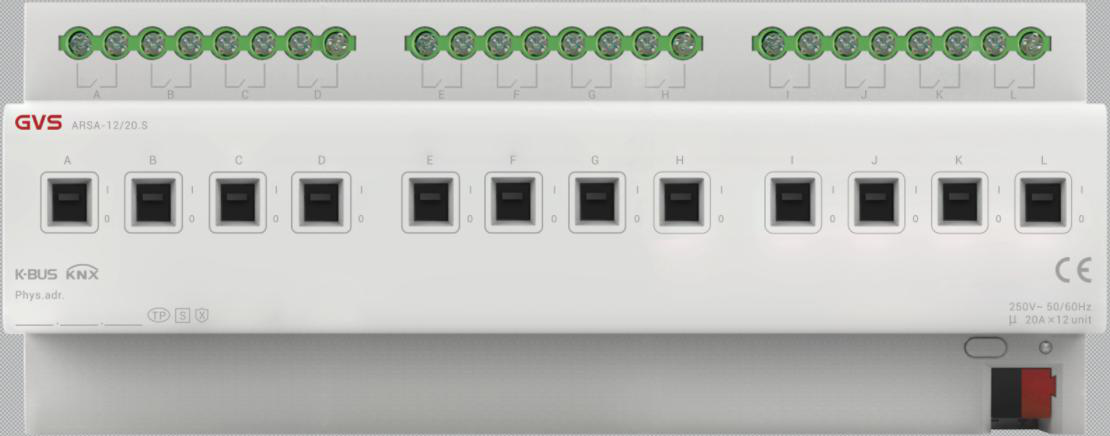

KNX Switch Actuator with Secure 12-Fold, 20A, 12SU MDRC
20A/channel, Un rated voltage 250V AC, 50/60Hz, high-current magnetic relay. Support Current, Voltage, Power factor, Active power, Apparent

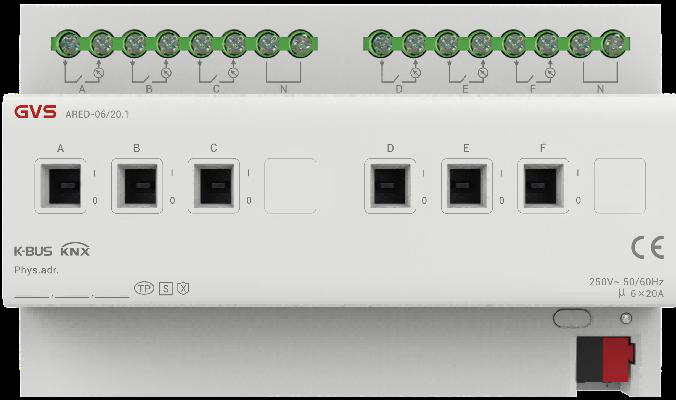

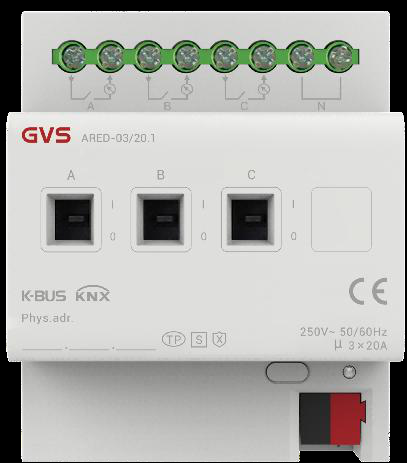

Switch Actuator with Energy detection with Secure,6-Fold,20A, 8SU MDRC

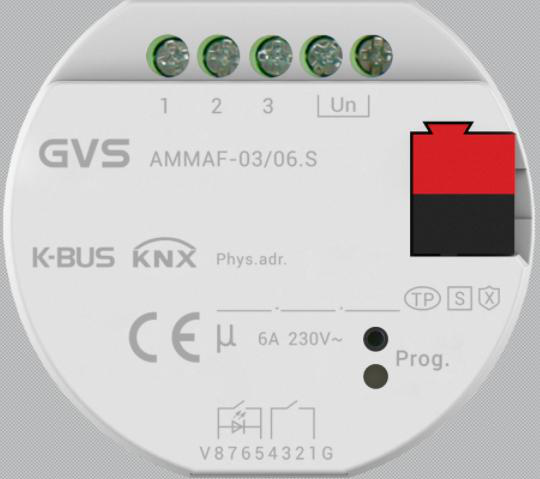

KNX Multifunctional Actuator with Secure 3-Fold, 6A, Flush Mounted
Multifunctional Actuator with Secure, 4-Fold, 16A, Flush Mounted

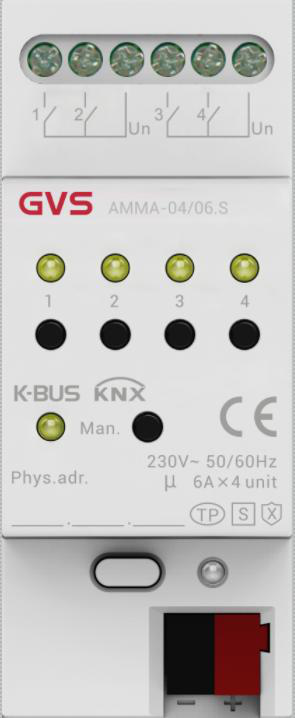

KNX Multifunctional Actuator 4-Fold with Secure, 6A, 2SU MDRC

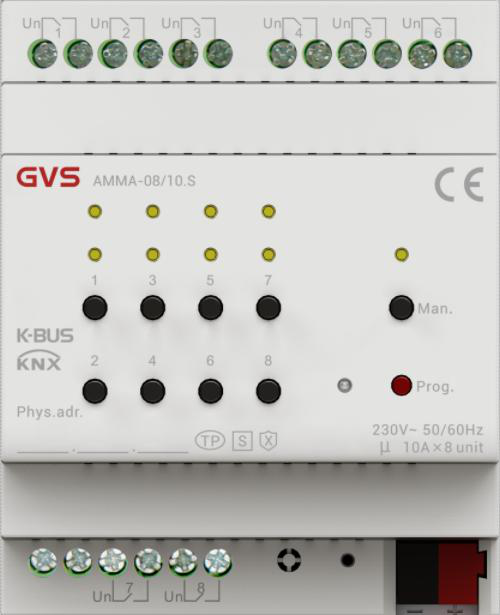

KNX Multifunctional Actuator 8-Fold with Secure, 10A, 4SU MDRC
10A/channel, Un rated voltage 230V AC, 50/60Hz, high-current magnetic relay. Main KNX functions including, switch, status response, scene

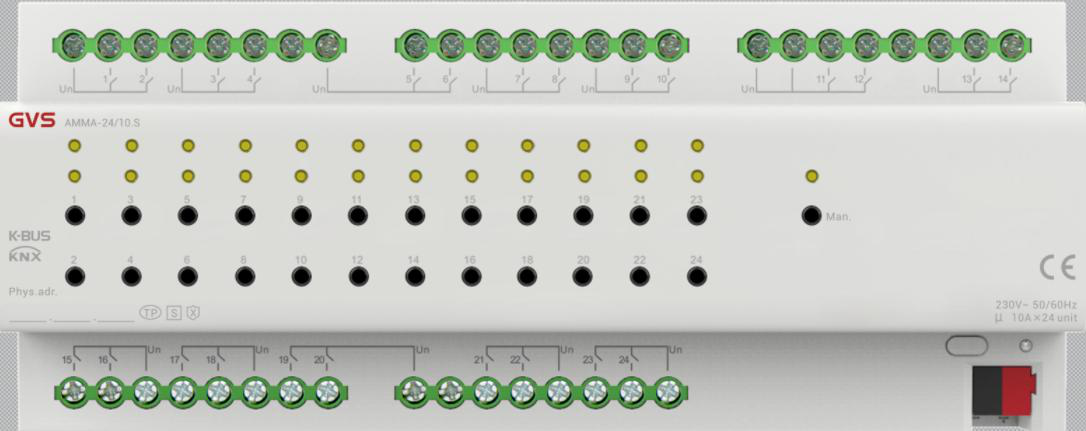

KNX Multifunctional Actuator 24-Fold with Secure, 10A, 12SU MDRC

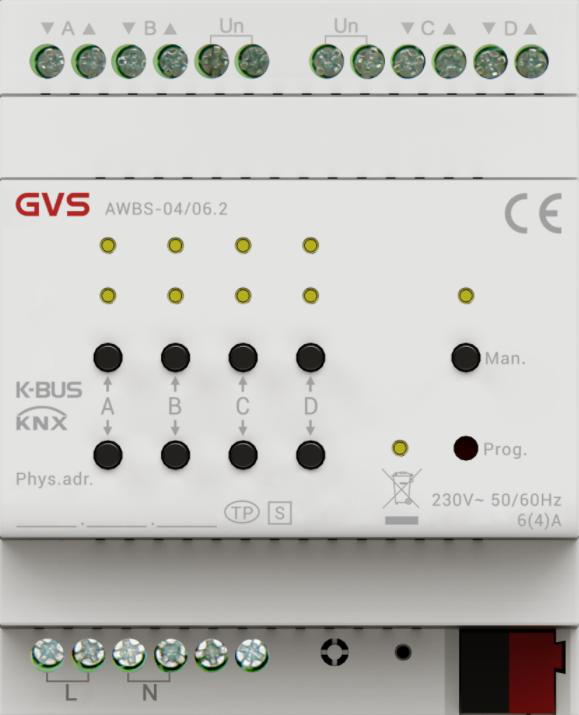

4 independent outputs, each with 1 changeover contact (UP/DOWN mechanically interlocked), Max. switching current 6A resistive, 370W Motor.

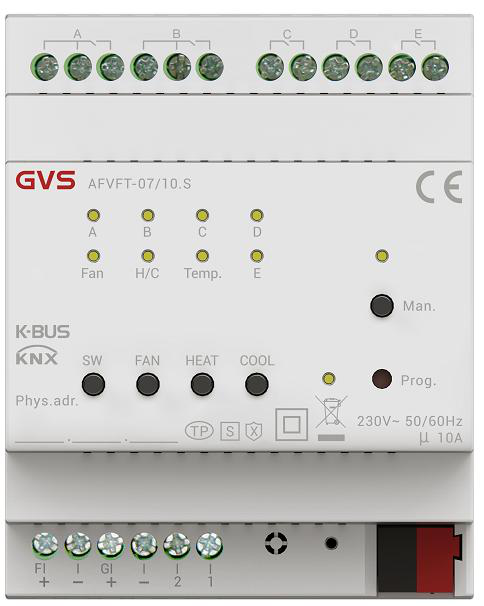

KNX Fan Coil Actuator with 0-10V with Secure, 4SU MDRC

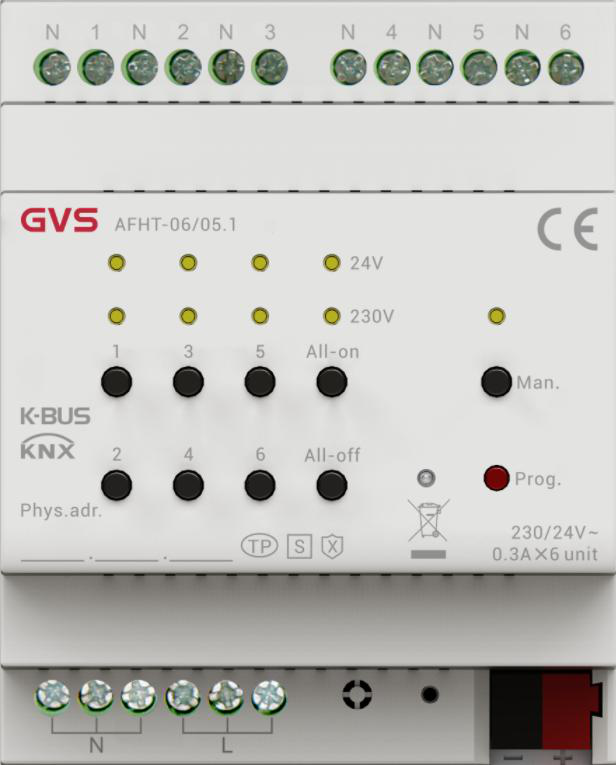

KNX Heating Actuator with Traic & Secure 6-Fold, 4SU MDRC

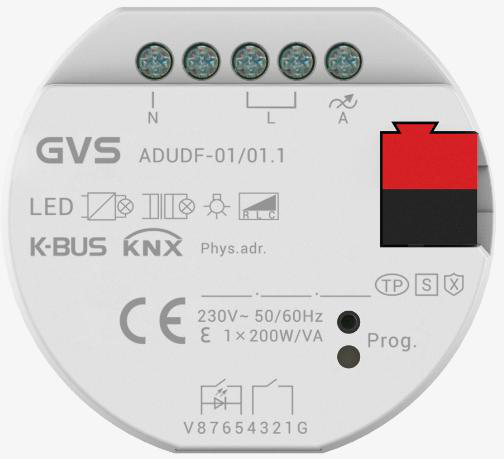

KNX Universal Dimming Actuator with Secure 1-Fold, Flush Mounted

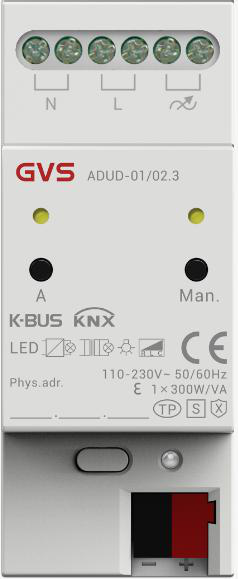

KNX Universal Dimming Actuator with Secure 1-Fold, 2SU MDRC

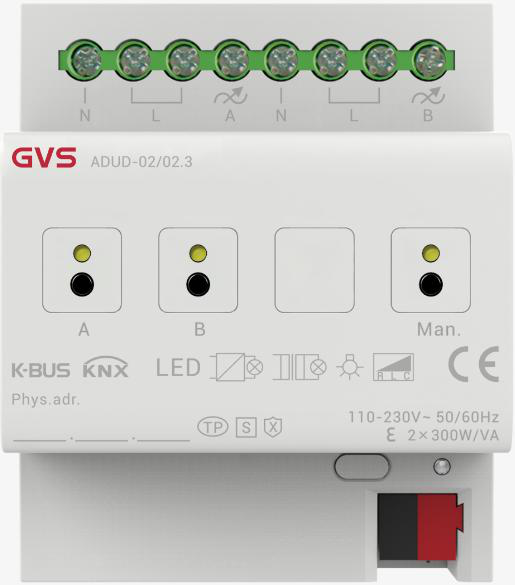

KNX Universal Dimming Actuator with Secure 2-Fold, 4SU MDRC
Constsant voltage drive mode, input 12-24V DC, rated current 4A, RGBW control. KNX functions including swicth, relative & absolute dimming,

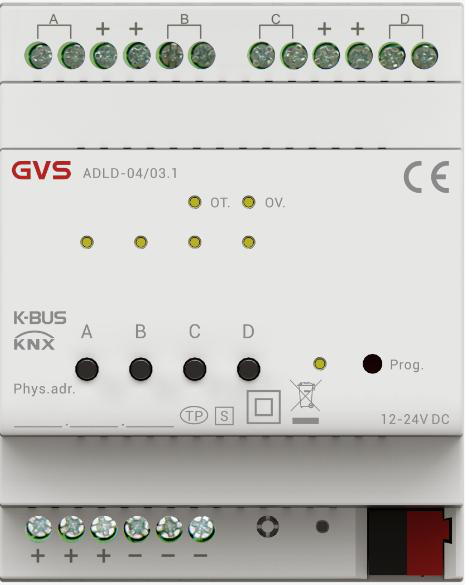

KNX LED Dimming Actuator 4-Fold, 4A, 4SU MDRC
1-10V Dimming Actuator with Secure,3-Fold,16A,Flush Mounted

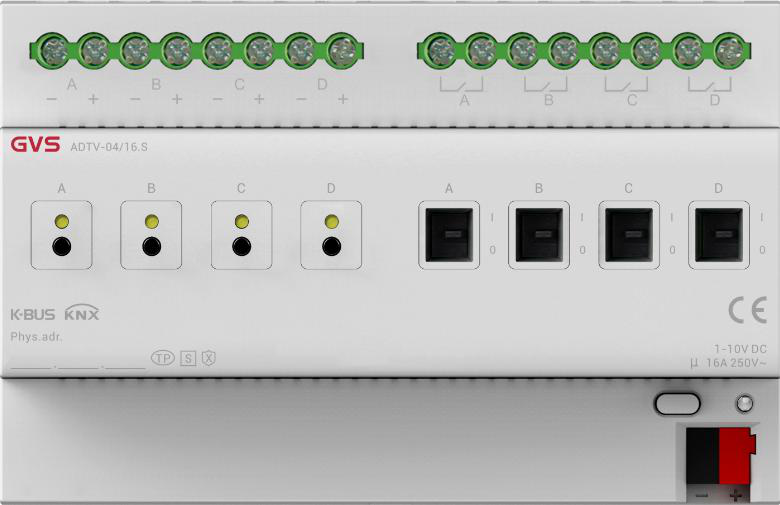

KNX 1-10V Dimming Actuator with Secure 4-Fold, 16A, 8SU MDRC

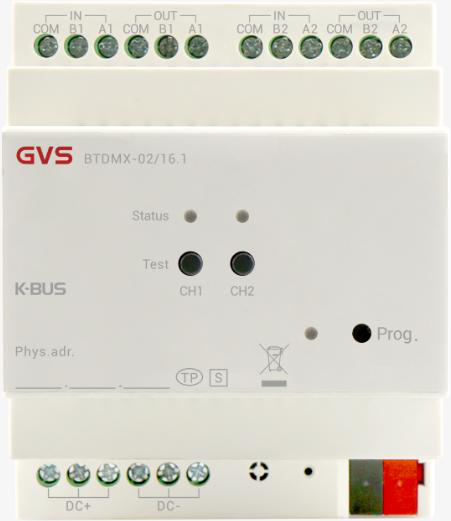

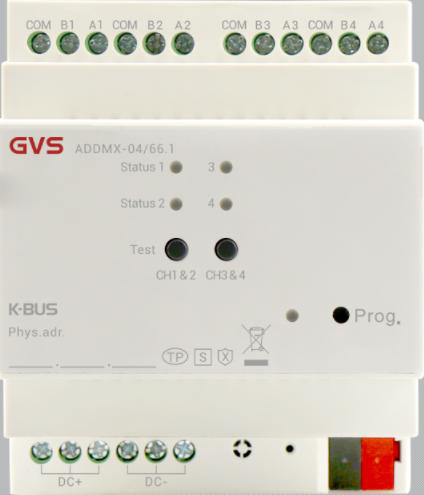

DMX512 Dimming Actuator with Secure, 4-Fold

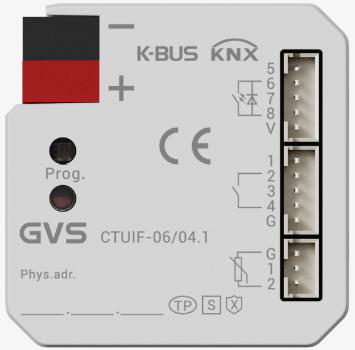

(J) KNX Universal Interface & Binary Input

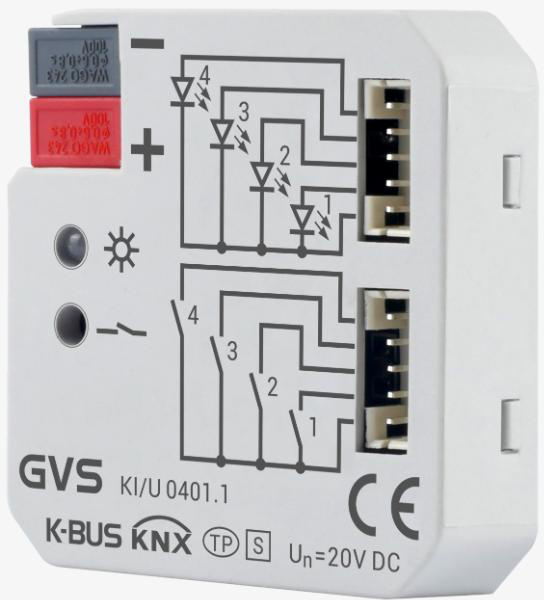

Can be individually configured per 4-fold input & 4-fold LED output, cable length≤10M, dry contact input, 5V DC LED output.
Can be individually configured per 8-fold input, cable length≤100M, dry contact input.

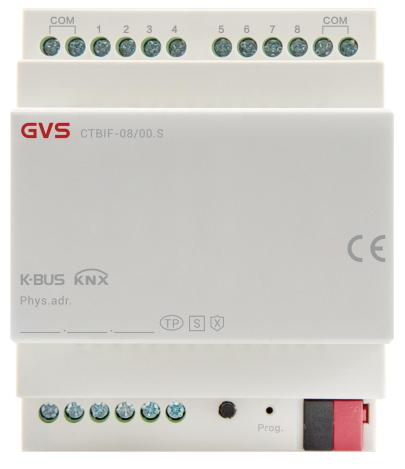

KNX Binary Input for Floating Contact with Secure 8-Fold, 4SU MDRC

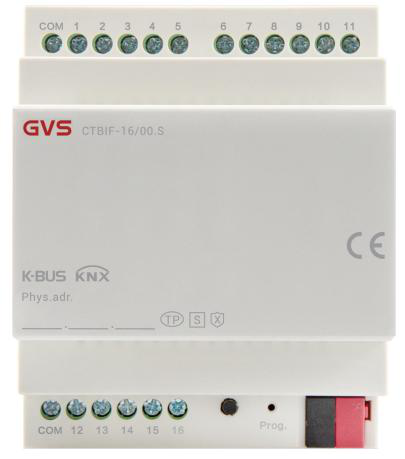

KNX Binary Input for Floating Contact with Secure 16-Fold, 4SU MDRC

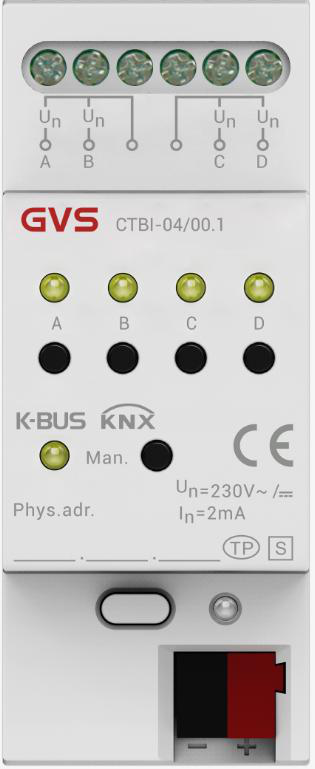

KNX Binary Input with secure 4-Fold, 2SU MDRC

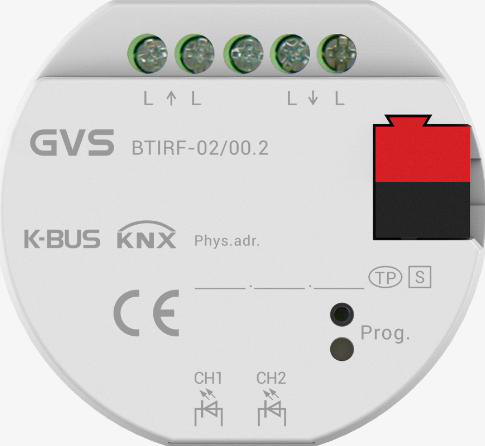

KNX Gateway for IR, 2-Fold, Flush mounted
Power: KNX Bus only; Consumption: bus 6.5mA
air-condition control up to 266 IR codes. Support DCA APP in ETS configuration.

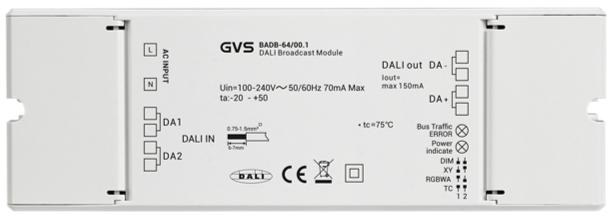

DALI telegram broadcast function, fault detection of lamps and ballasts of DALI devices. For each fold, Max.64 DALI devices can be controlled,
DALI telegram broadcast function, fault detection of lamps and ballasts of DALI devices. For each fold, Max.64 DALI devices can be controlled,

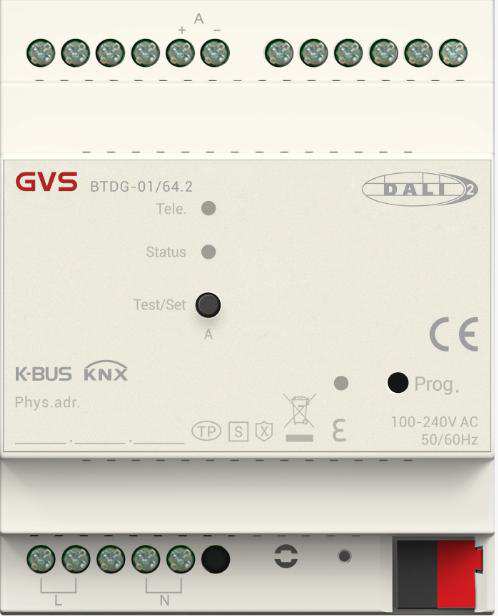

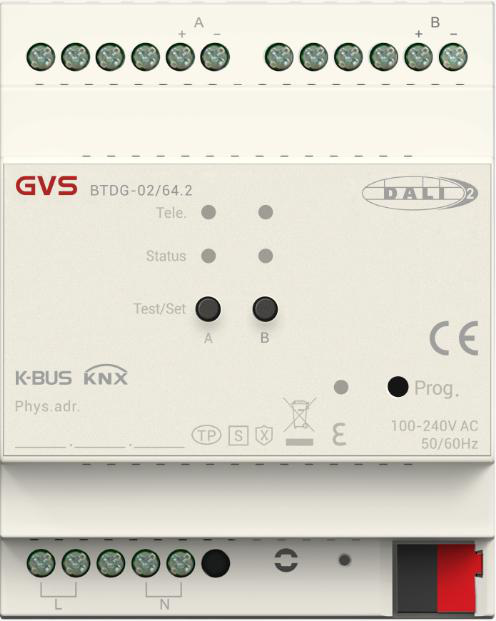

KNX/DALI-2 Gateway 2-Fold with Secure, 4SU MDRC
KNX/DALI-2 Gateway 2-Fold with Secure, 4SU MDRC
DMX512 Record and Replay with 100Min with Secure, 2-Fold
Power: KNX Bus only; Consumption: bus 12mA

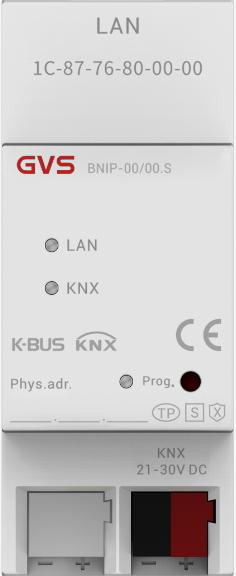

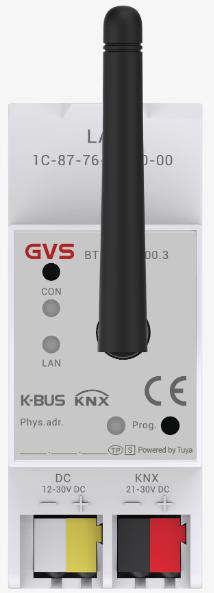

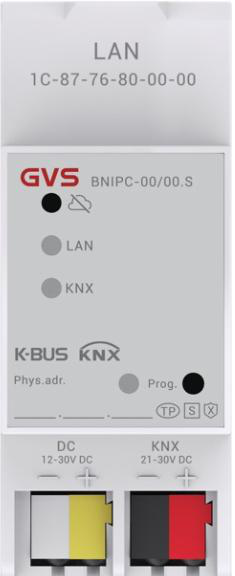

KNX IP Interface with Secure & Cloud, 2SU MDRC
App for remote control of KNX system, works on IOS and Android phone, support remote control via GVS cloud.

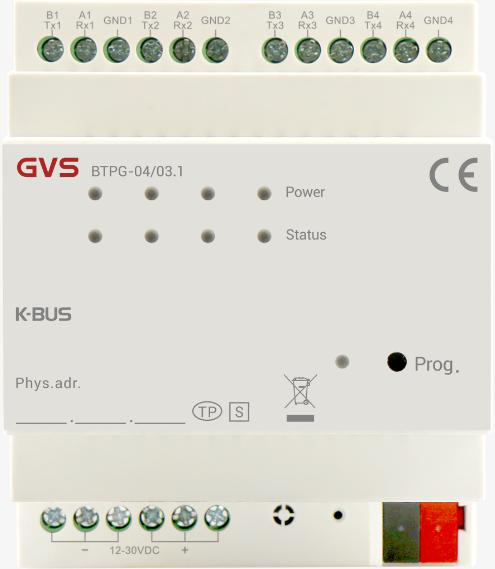

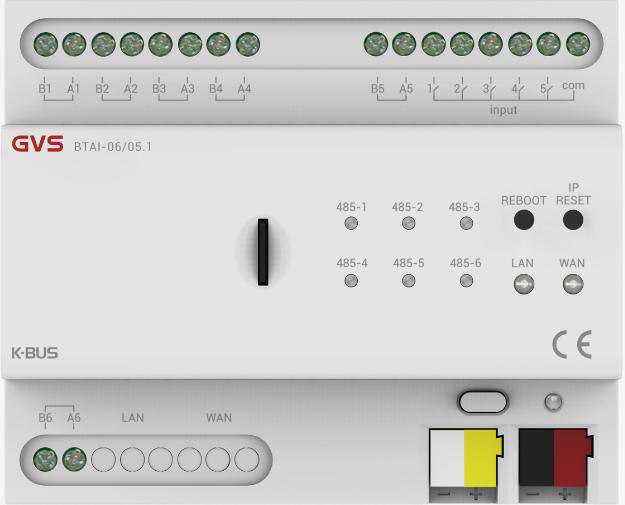

By defaut it contains 1 fold of KNX/RS485 converter. Another 3 folds of KNX/RS232 or KNX/RS485 converter boards can be added to form a device
By defaut it contains 1 fold of KNX/RS485 converter. Another 3 folds of KNX/RS232 or KNX/RS485 converter boards can be added to form a device
DO NOT ORDER THIS ITEM ALONE, it is used to extend ONE extra fold of KNX/RS485 converter for BTPG-04/03.1

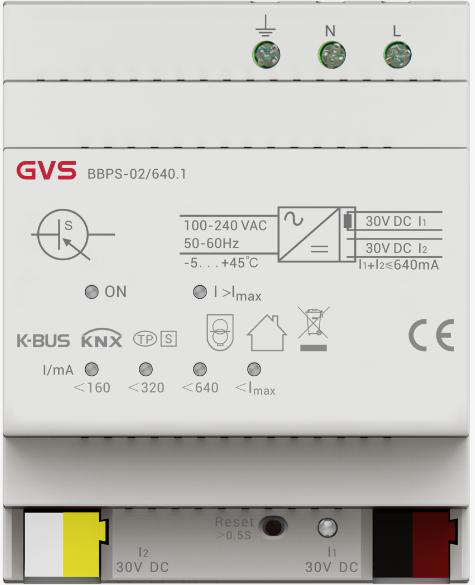

Input voltage 95V-255VAC, 50/60Hz, output 1: 30V DC, SELV with choke; output 2: 30V DC,SELV without choke, total 640mA, short-circuit-
Input voltage 95V-255VAC, 50/60Hz, output 1: 30V DC, SELV with choke; output 2: 30V DC,SELV without choke, total 640mA, short-circuit-
protection. Current level indicator. The minimum distance betwee 2 power supply in a line is 300meter
Power: KNX Bus only; Consumption: bus 12mA
system. Support long frame 55 bytes APDU length
Telegram tunneling and routing, can be used as a line coupler, backbone coupler to connect several TP areas or different TP installation systems
Switch relay 4 * 16A,21 * 6A; 1 folds AC/Dry contact shutter, 2 folds TRIAC dimming, 3 folds 0-10V dimming, 1 fold fan coil actuator with 0-10V
(N) Accessories Tailor-made (Fits only GVS devices)

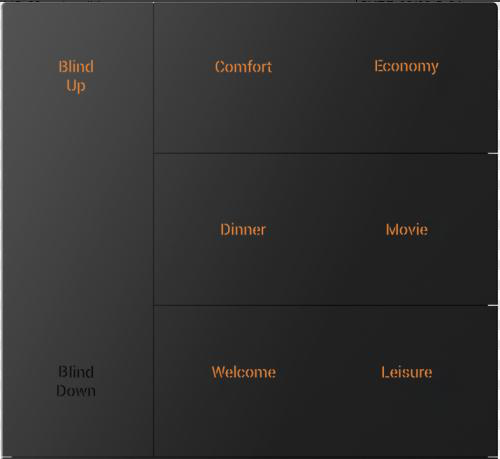

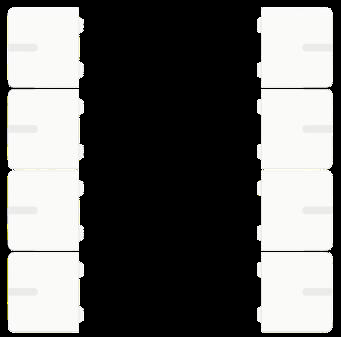

S7 Extension Buttons, 4-Button - light through engraving
Order together with button base to extend S7 to button version.
Order together with button base to extend S7 to button version.
Order together with button base to extend S7 to button version.
Order together with S7 extension buttons to extend S7 to button version.
Standard KNX 4-core (red,black,white,yellow) wire, Aluminum foil shielding, ground line, Copper wire diameter:0.8mm, Twisted pair:2 x Twisted
Red & black KNX terminal, yellow & white KNX terminal; 8*Φ0.6-0.8mm², 50 units/box.
Annex B - KNX SYSTEM Accessory PRICE LIST

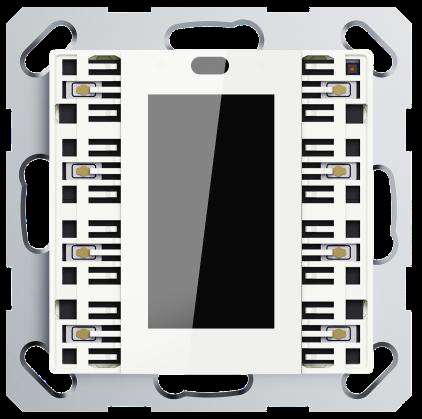

KNX Push Button Sensor with Relay, 8 buttons
Orders need to be placed together with buttons below.
Defined laser engravement, please define the design for laser engravement in advance, or else standard pattern will be applied.
Powered by lithium battery (650mAh), support max. 6 months range, type C changing; functions include dimming control, on/off
Powered by lithium battery (650mAh), support max. 6 months range, type C changing; functions include dimming control, on/off
Power Supply: Lithium Battery (380mAh), support max. 3 months range;
(a) Accessories - Normal 55mm frames in GVS finish

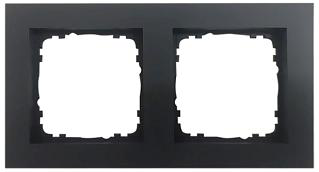

Waltz frame 2-fold, aluminium finish, for 55mm system

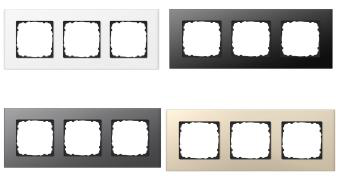

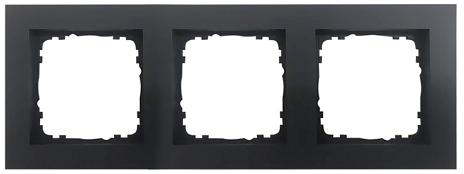

Waltz frame 3-fold, aluminium finish, for 55mm system
100% fits German 55mm installation system, compatible with K-BUS push button sensor, Gira standard 55, E2, Esprit, Jung Aplus, A500, AS500,
Alignment Bracket 3-fold, for Waltz frame 1-fold (86)
100% fits German 55mm installation system, compatible with GVS push button sensor, Gira standard 55, E2, Esprit, Jung Aplus,
100% fits German 55mm installation system, compatible with GVS push button sensor, Gira standard 55, E2, Esprit, Jung Aplus,
100% fits German 55mm installation system, compatible with GVS push button sensor, Gira standard 55, E2, Esprit, Jung Aplus,
100% fits 55mm European installation system, compatible with K-BUS push button sensor, Gira standard 55, E2, Esprit, Jung Aplus, A500, AS500,
100% fits 55mm European installation system, compatible with K-BUS push button sensor, Gira standard 55, E2, Esprit, Jung Aplus, A500, AS500,
100% fits 55mm European installation system, compatible with K-BUS push button sensor, Gira standard 55, E2, Esprit, Jung Aplus, A500, AS500,
100% fits 55mm European installation system, compatible with K-BUS push button sensor, Gira standard 55, E2, Esprit, Jung Aplus, A500, AS500,
100% fits 55mm European installation system, compatible with K-BUS push button sensor, Gira standard 55, E2, Esprit, Jung Aplus, A500, AS500,
100% fits 55mm European installation system, compatible with K-BUS push button sensor, Gira standard 55, E2, Esprit, Jung Aplus, A500, AS500,
100% fits 55mm European installation system, compatible with K-BUS push button sensor, Gira standard 55, E2, Esprit, Jung Aplus, A500, AS500,
100% fits 55mm European installation system, compatible with K-BUS push button sensor, Gira standard 55, E2, Esprit, Jung Aplus, A500, AS500,
100% fits 55mm European installation system, compatible with K-BUS push button sensor, Gira standard 55, E2, Esprit, Jung Aplus, A500, AS500,
100% fits 55mm European installation system, compatible with K-BUS push button sensor, Gira standard 55, E2, Esprit, Jung Aplus, A500, AS500,
100% fits 55mm European installation system, compatible with K-BUS push button sensor, Gira standard 55, E2, Esprit, Jung Aplus, A500, AS500,
Annex D - DALI SYSTEM Accessory PRICE LIST

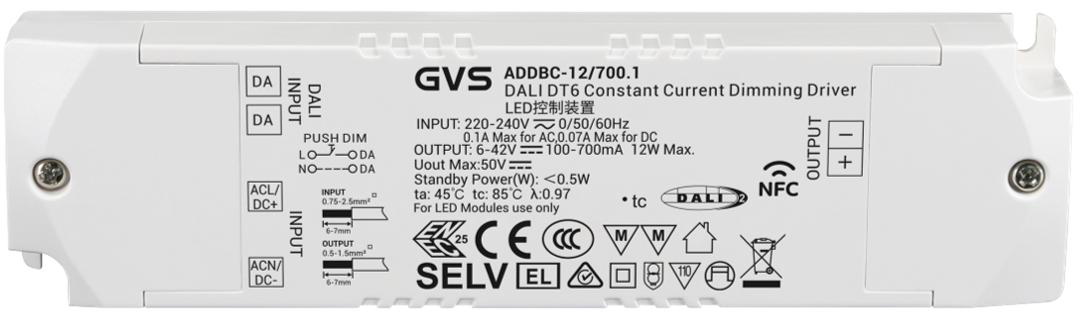

DALI DT6 Constant Current Dimming Driver, Single Color, 12W
DALI DT6 Constant Current Dimming Driver, Single Color, 12W

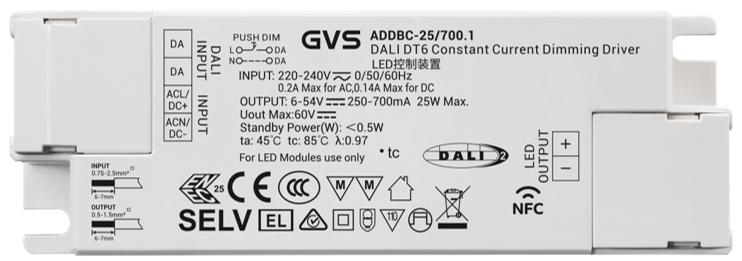

DALI DT6 Constant Current Dimming Driver, Single Color, 25W

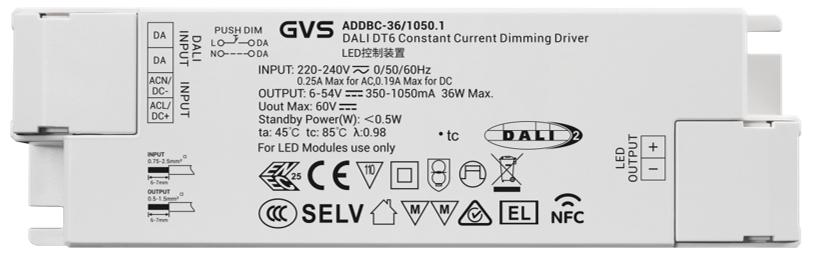

DALI DT6 Constant Current Dimming Driver, Single Color, 36W

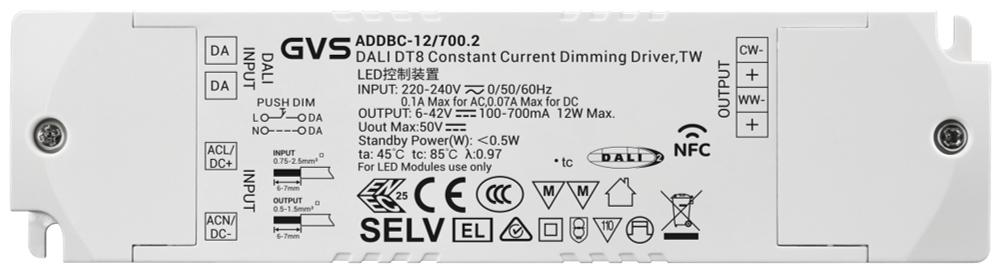

DALI DT8 Constant Current Dimming Driver,TW, 12W
DALI DT8 Constant Current Dimming Driver,TW, 25W
DALI DT6 Constant Voltage Dimming Driver, Single Color, 150W
DALI DT6 Constant Voltage Dimming Driver, Single Color, 150W
DALI DT8 Constant Voltage Dimming Driver, TW, 75W
DALI DT8 Constant Voltage Dimming Driver, TW, 150W
DALI DT8 Constant Voltage Dimming Driver, RGB/RGBW, 75W
DALI DT8 Constant Voltage Dimming Driver, RGB/RGBW, 150W
